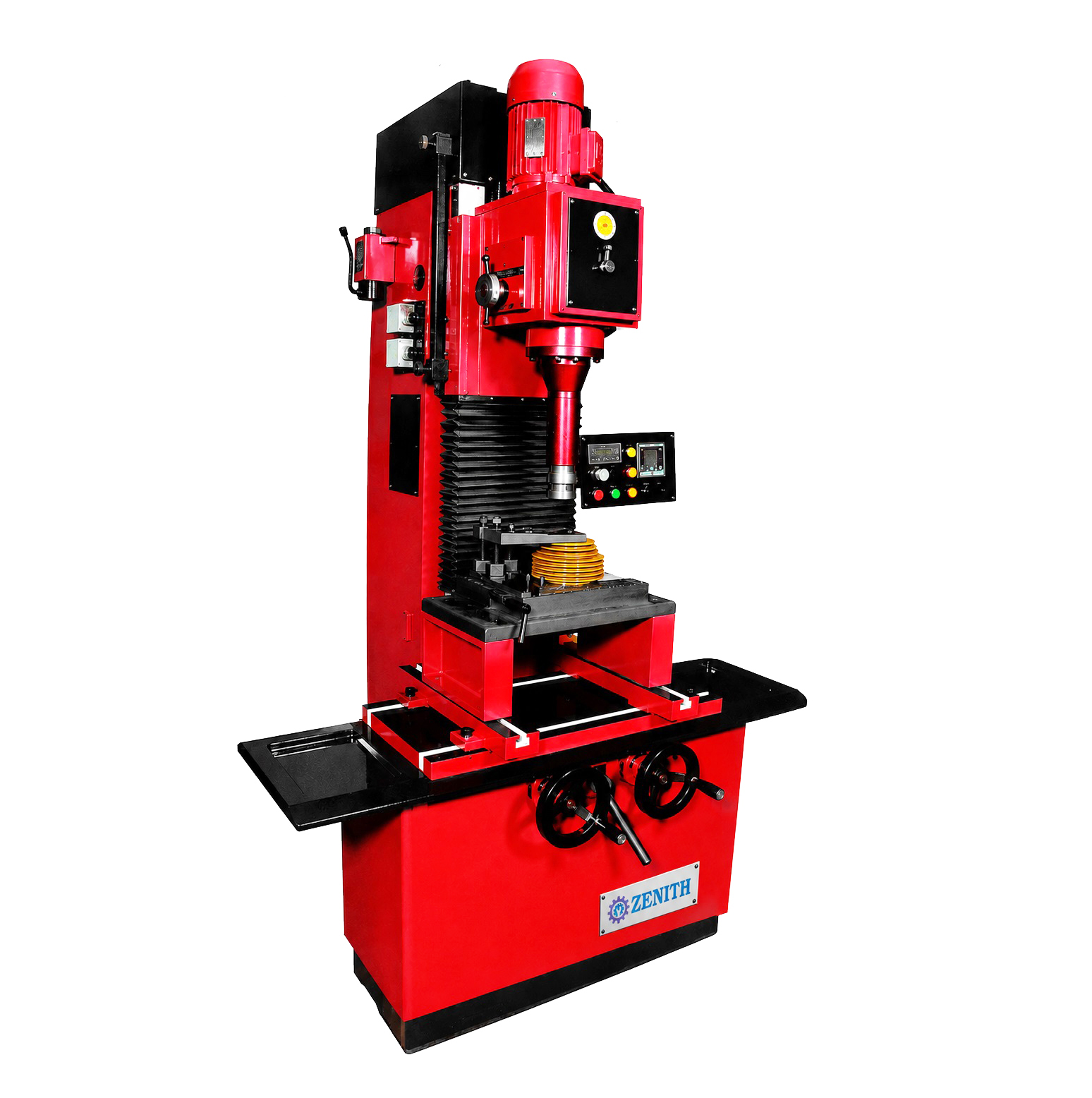

Vertical Cylinder Fine Boring Machine
ZII-VBM-300
Technical Specifications :
| Boring Capacity | Standard Ø 38–78 mm |
| Max. Boring Head Travel | 300 mm |
| Spindle Speed (Infinitely Variable) | 50–550 RPM |
| Spindle Feed | 0.05 mm/Revolution |
| Max. Distance from Spindle center to column | 250 mm |
| Working Table Size (LxW) | 600 × 300 mm |
| Table Traverse - Longitudinal | 250 mm |
| Table Traverse - cross wise | 30 mm |
| Spindle Motor Power | 0.75 KW / 1 HP |
| Rapid Motor Power | 0.19 KW / 0.25 HP |
| Overall Dimensions | 1750 x 1150 x 1000 mm |
| Approx. Weight | 850 KG |
Standard Equipment:
| Setting Up Parallel | 01 Pair |
| Tool Setting Micrometer with Magnetic Base | 01 No |
| M12 T nut & Bolt with washer | 04 No |
| M16 T Bolt, washer with nut | 04 No |
| Single cylinder Block clamping device | 01 No |
| Allenkey Set (9 No) | 01 Set |
| Boring Spindle Dia 38 | 01 No |
| Centering Device for dia 38 Spindle | 01 No |
| Boring Tool Dia 16 X 32 | 01 No |
| Boring Tool Dia 16X 45 | 01 No |
| Chamfering Tool | 01 No |
| Facing Tool | 01 No |
| Leveling Bold (Fitted In Machine) | 01 No |
| Double end Spanner 21/23 | 01 No |
| T-Hand Allenkey 4mm | 01 No |
| T-Hand Allenkey 5mm | 01 No |
