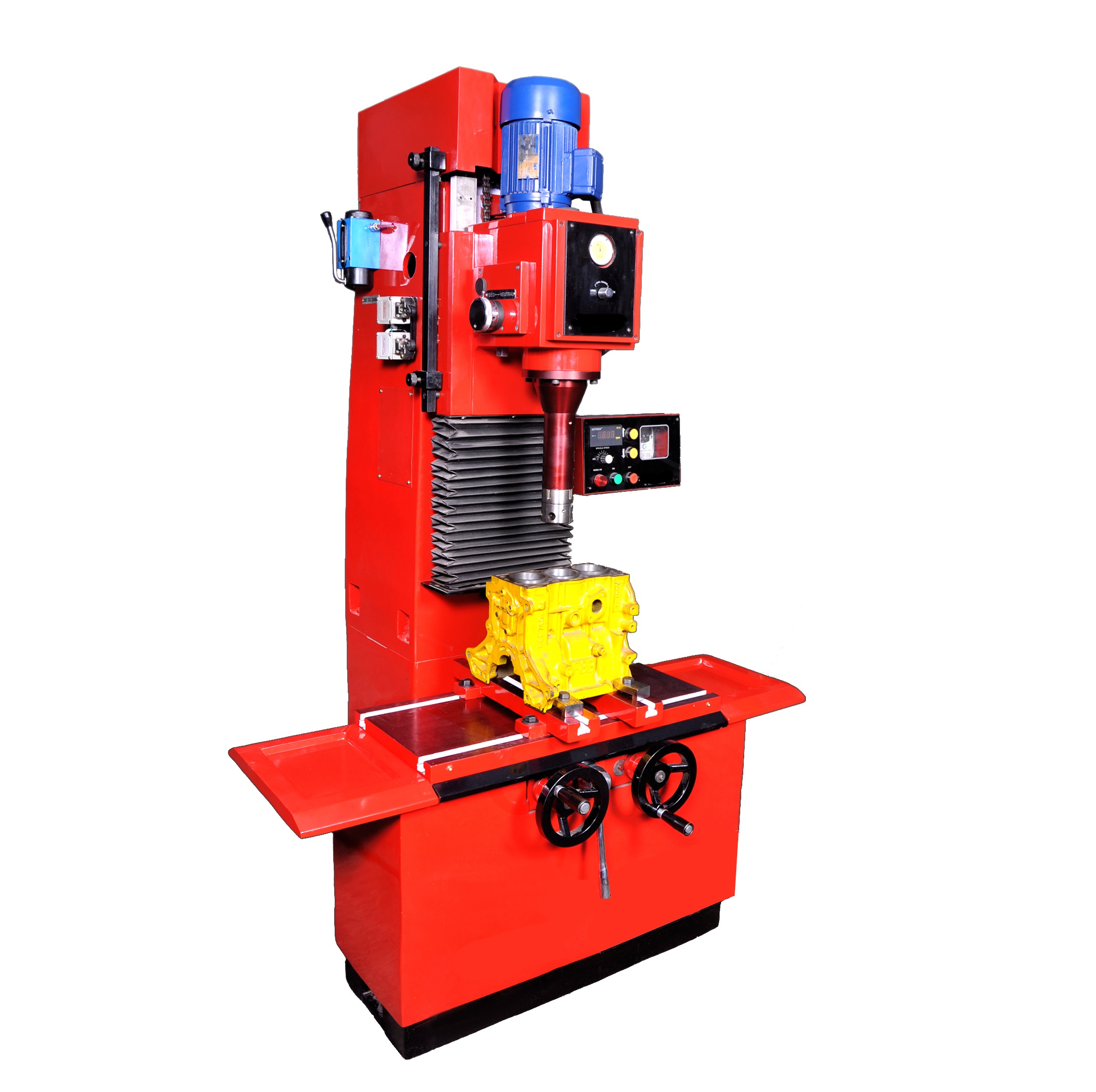

Vertical Cylinder Fine Boring Machine
ZII-VBM-400
Technical Specifications :
| Boring Capacity | Standard Ø 38–120 mm |
| Max. boring Head Travel | 325 mm |
| Spindle Speed (Infinitely Variable) | 50–550 RPM |
| Spindle Feed | 0.05 mm/Revolution |
| Max. Distance from Spindle center to column | 275 mm |
| Working Table Size (LxW) | 625 × 300 mm |
| Table Traverse - Longitudinal | 275 mm |
| Table Traverse - cross wise | 30 mm |
| Motor Spindle Speed | 0.75 KW / 1 HP |
| Motor Rapid Speed | 0.19 KW / 0.25 HP |
| Overall Dimensions | 1150 x 1000 x 1750 mm |
| Approx. Weight | 850 KG |
Standard Equipment:
| Setting Up Parallel | 01 Pair |
| Tool Setting Micrometer with Magnetic Base | 01 No |
| M12 T nut & Bolt with washer | 04 No |
| M 16 T Bolt, washer with nut | 04 No |
| Block Tighting clamp | 04 No |
| Allenkey Set ( 9 No ) | 01 Set |
| Boring Spindle Dia 46 | 01 No |
| Boring Spindle Dia 60 | 01 No |
| Centering Device for dia 46 Spindle | 01 No |
| Boring Tool Dia 16 X 32 | 01 No |
| Boring Tool Dia 16X45 | 01 No |
| Chamfering Tool | 01 No |
| Facing Tool | 01 No |
| Leveling Bolt (Fitted In Machine) | |
| Double end Spanner 21/23 | 01 No |
| T-Hand Allenkey 4mm | 01 No |
| T-Hand Allenkey 5mm | 01 No |
