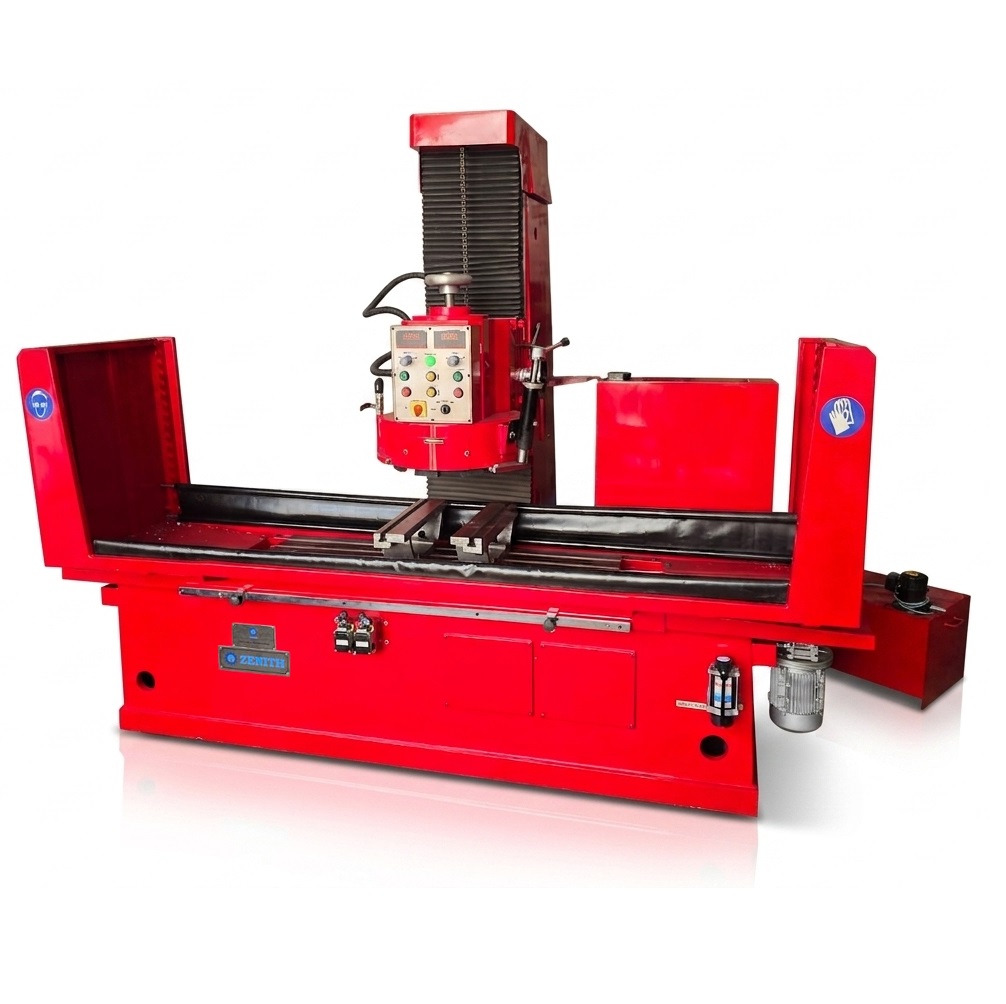

Vertical Head Surface Grinder
ZII-VSG-1500
Technical Specifications :
| Operation Type | Hydraulic |
| Longitudinal Table Traverse | 1500 mm |
| Vertical Head Traverse | 720 mm |
| Max. Grinding Length | 1300 mm |
| Max. Grinding Width | 450 mm |
| Max. Distance between Table and Grinding Wheel | 720 mm |
| Distance from Column to Table Centre | 380 mm |
| Segmental Wheel Dia. | 450 mm |
| Grinding Spindle Rotating Speed | Variable |
| Grinding Spindle Motor Power | 7.5 Hp (5.5 Kw) |
| Head Rapid Feed Motor Power (Up, Down) | 0.50 Hp (0.37 Kw) |
| Hydraulic System Motor Power | 1 Hp (0.75 Kw) |
| Coolant Pump Motor Power | 0.50 Hp (0.37 Kw) |
| Overall Size | 2300 x 1250 x 2000 mm |
| Approx. Weight | 2000 Kg |
